Discover the HTG Next Gen, designed to minimize product loss and streamline the granulation process, addressing hidden costs with proven technology.
Key takeaways
- Flexible systems support a wide range of bag styles and sizes
- High-speed concepts reach up to 600 bags per minute
- Compact machine designs help maximize output per square meter
- Adjustable handling options support more fragile products
- Paper-based and mono-material solutions support environmental goals

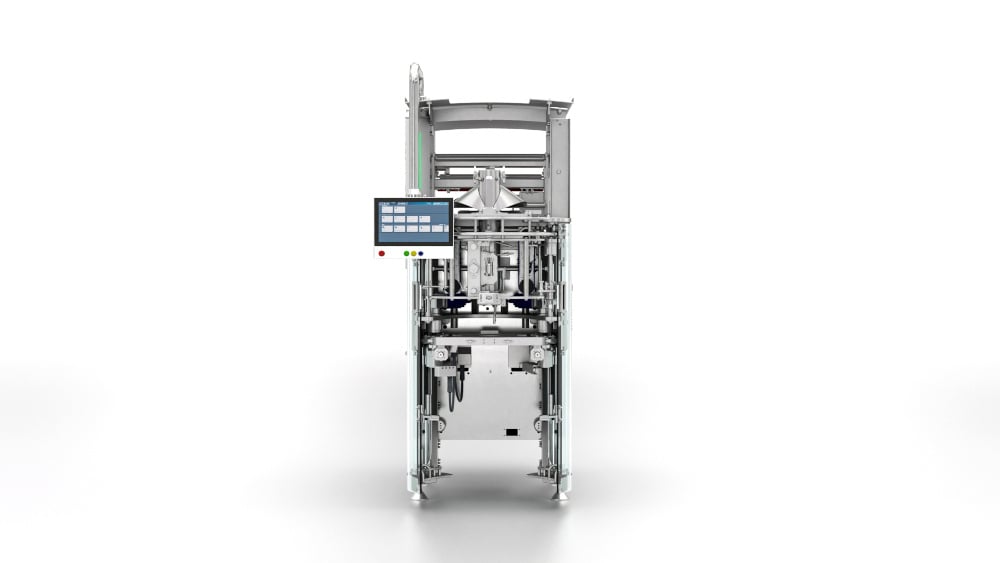

Flexible, high-speed vertical packaging for various bag styles
Based on its innovative design, this machine is fast and easy to operate. Changeovers from pillow to block bottom bags and back can be performed quick and consistently.
Key information:
- Output up to 300 bags/min
- Pillow, gusset and block bottom bags
- Bag width from 50 up to 270 mm
- Compact footprint with a width of 850 mm
This system is ideal for manufacturers who produce a wide range of products in different bag styles and sizes, such as robust crackers, small cookies and wafers. Designed for paper-based and mono-materials and equipped with our innovative product-in-seal-detection the machine enables the achievement of environmental goals without compromising productivity.
Double lane vertical packaging for small pillow bags
Based on its innovative design, this machine provides the highest output per square meter. It produces two bags at the same time and can work with two (single lane) reels or with a film lane cutting device to work with one (double lane) reel.
Key information:
- Output up to 600 bags/min
- Pillow bags
- Bag width from 50 up to 145 mm
- Compact footprint with a width of 1220 mm
This system is ideal for manufacturers who want to package smaller portions of cookies, crackers, and wafers at high-speed. Designed for paper-based and mono-materials and equipped with our innovative product-in-seal-detection this machine is the right choice for high productivity.
Vertical packaging with ultimate bag style versatility
This machine is the industry standard for making Doy style bags with or without zip. On top of that it can also be used for the conventional pillow or block bottom bags, with or without sealed corners.
Key information:
- Output up to 180 bags/min
- Pillow bags, gusset, and block bottom bags with or without sealed corners
- Doy style bags and 3-side seal bags with or without zipper
- Bag width from 60 up to 320 mm
This system is ideal for manufacturers that require a premium bag style like DoyZip but do not want to invest in a dedicated horizontal pouch maker due to space requirements and lack of flexibility. For smaller bags (bag width up to 250 mm), the SVE 2520 DZ could be the better option.
Vertical packaging with adjustable tube inclination
This machine has been developed with fragile cookies in mind. By adjusting the inclination of the forming set, the product is handled as gentle as possible on a vertical packaging machine. The machine can make block bottom bags with or without sealed corners.
Key information:
- Output up to 180 bags/min
- Pillow bags, gusset, and block bottom bags with or without sealed corners
- Bag width from 60 up to 250 mm
This system is ideal for manufacturers of products that are too fragile to handle on conventional vertical packaging machines. It offers the flexibility to adjust the inclination depending on the product and the bag style.
